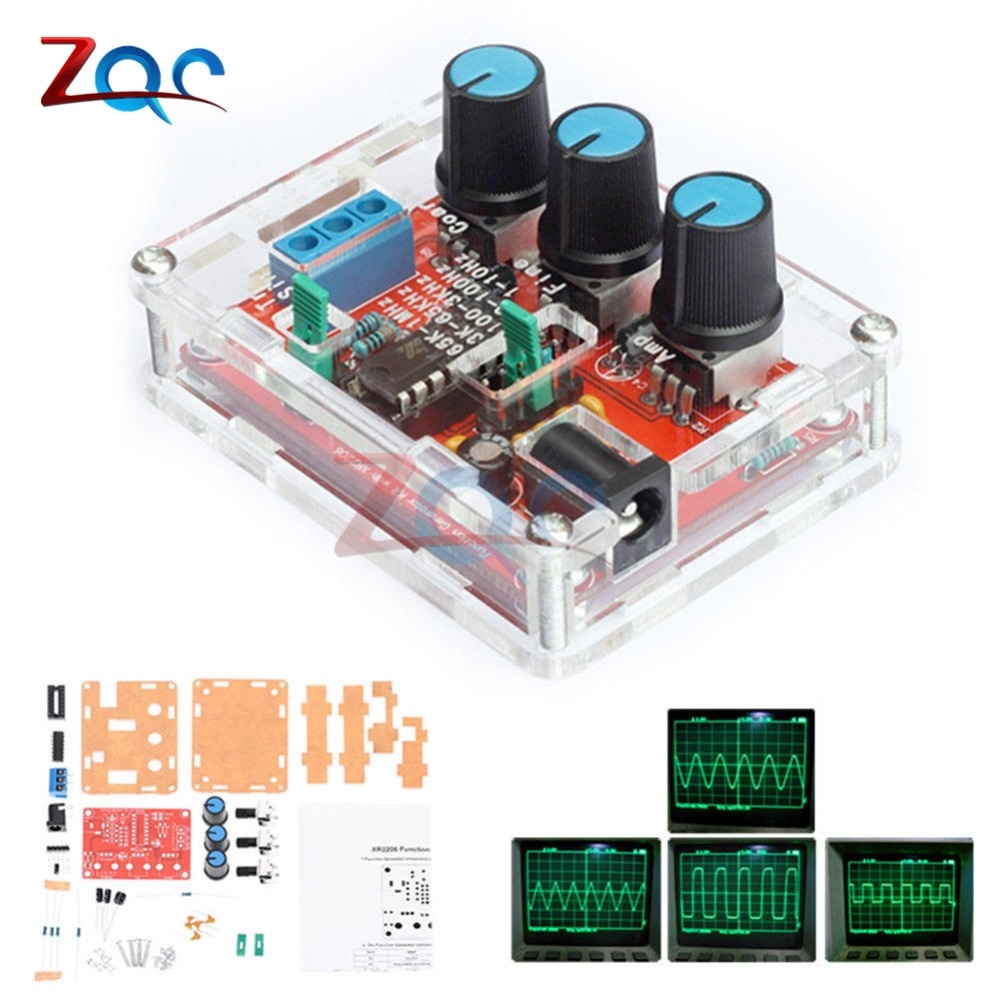

Kit Soldered1Hz-1Mhz Xr2206 Function Signal Generator DIY Sine/Triangle/Square O

The frequency and amplitude are adjustable; the frequency adjustment has coarse and fine adjustment; the frequency can be from 1HZ-1MHZ. Ghz Signal Generator ICL8038 Signal Generator Module – Sine, Square & Triangle Waves, Ready To Use! Function Generator Module Sine Square Triangle Wave Output It's the signal's amplitude variation in a frequency range. Triangular: Adjustable amplitude between 0 and 3V, with power supply of 9V. Linearity: lower than 1% up to 100kHz. What is linearity? Its how a system or function output is directly proportional to it's input. Square: With 9V power supply and without load, amplitude can reach 8V The waveform may not be stable for more than 12 v Using the step 1., J1 jumper cap plug in, SIN/TRI blue terminals output sine wave (note J1, J2 can only insert one of) 2., J2 jumper cap plug in, SIN/TRI blue terminals output triangular wave (note J1, J2 can only insert one of) 3., SQU blue terminals output pulse 4., AMP : Sine wave, triangle wave amplitude adjustment 5., FINE : Frequency fine adjustment 6., Coarse : Frequency of coarse adjustment Note: Our products have two-years warranty If you have any questions, please contact us by email first, we will help you solve the problem immediately Package Included: 1x XR2206 Function Signal Generator （Welding completed） Waveforms: Square, Sine & Triangle., Five-digit resolution. All in-line components, small number of components, simple installation and debugging. Pipa Elettronica Kit Soldered1Hz-1Mhz Xr2206 Function Signal Generator DIY Sine/Triangle/Square O Alimentazione 9-12V DC
