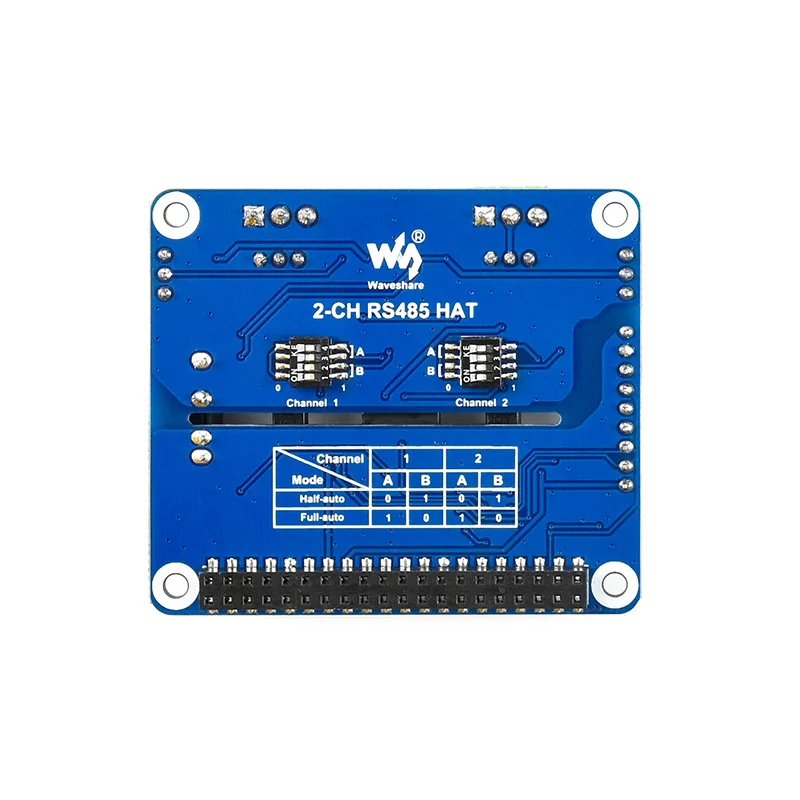

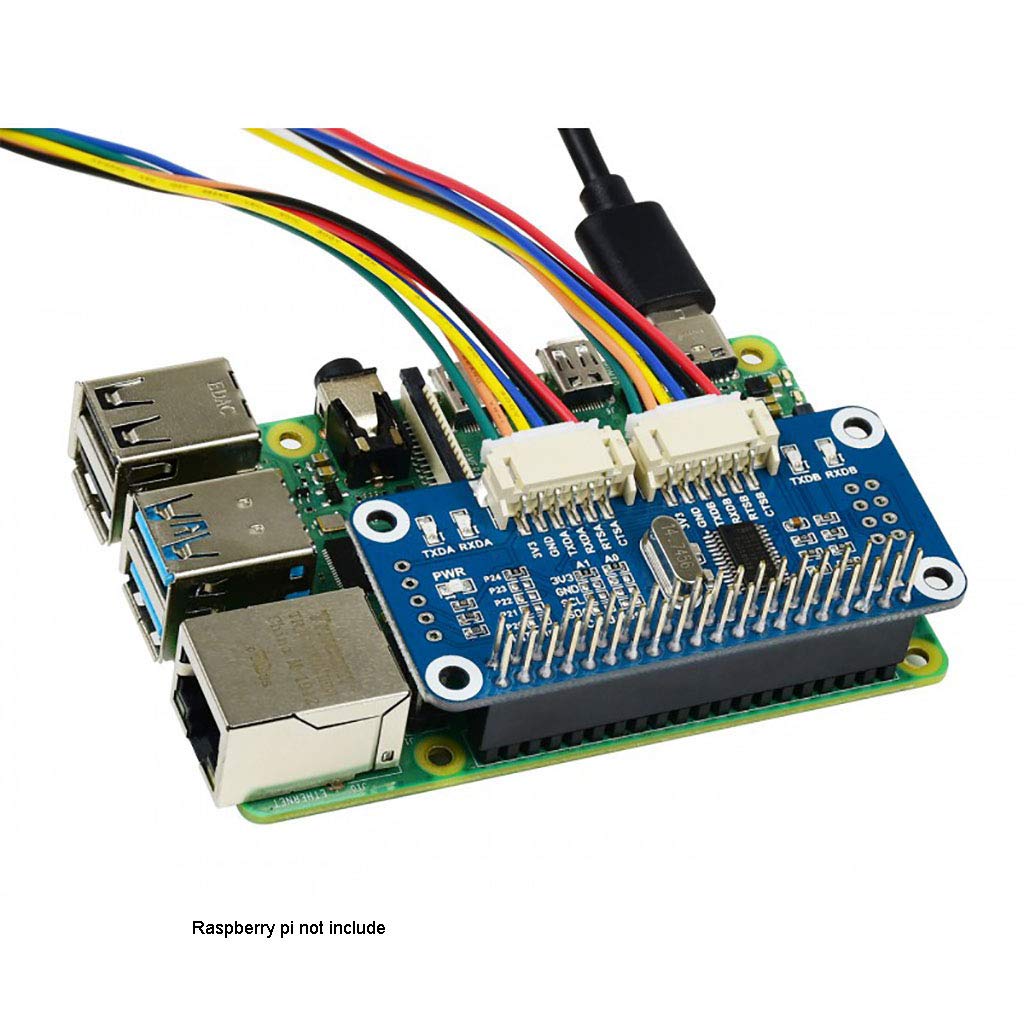

Waveshare 2-Channel Isolated RS485 Expansion HAT For Raspberry Pi

Adattatore Raspberry Pi Waveshare 2-Channel Isolated RS485 Expansion HAT For Raspberry Pi Can Bus Fd Shield 2 Channel Rs485 Hat Dual-channel For Raspberry Pi 4B | Buy In Australia Rs485 Expansion Hat Caratteristiche Standard Raspberry Pi 40PIN GPIO extension header, supporti Raspberry Pi series board Adopts SC16IS752+SP3485 dual chip combinazione, converts SPI to RS485, data rate up to 921600bps Allows transceiving dati manually or automatically, configured by DIP switch Onboard TVS (Transient Voltage Suppressor), effectively soppress surge voltage and transient spike voltage in the circuit, lightning-proof & anti-electrostatic Onboard auto-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance LED Onboard per indicare lo stato di alimentazione e transceiver Breakout SPI control pins, for connecting with host control board like Arduino Comes with development resources and manual (examples in C and Python) Specifiche UART espansione chip: SC16IS752 RS485 transceiver: SP3485., Interfaccia: SPI Dati rate: 300 ~ 921600 bps Tensione di funzionamento: 3,3 V/5 V. Buy Waveshare 17221 2-Channel Isolated RS485 Expansion HAT for Raspberry Pi in India | Fab.to.Lab Misura del foro di montaggio: 3,0 mm., Wiki: www., waveshare. It is easy to control the 2-channel RS485 for auto transceiving via SPI interface. A causa della sua comunicazione veloce, stabilità, affidabilità, e sicurezza, è una scelta ideale per i campi come automazione industriale. Onboard auto-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance. Allows transceiving data manually or automatically, configured by DIP switch. Breakout SPI control pins, for connecting with host control boards like Arduino. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards. Due to its fast communication, stability, reliability, and safety, it is an ideal choice for fields like industrial automation. Dimensioni: 65 mm x 56,5 mm.
